HC开源免费物联网系统支持按车牌设置不同的临时车费规则

一、说明

主要解决以下两种场景：
场景一：部分小区按不同的车牌颜色来设定不同的收费规则，比如小区里有充电桩 那么绿牌车可能收费就会便宜，比如白色车牌公务车可能免费
场景二：小区里将特定的一部分车按一种临时停车费规则来收费，这个特定的车辆需要在系统里添加

二、按车牌颜色收费

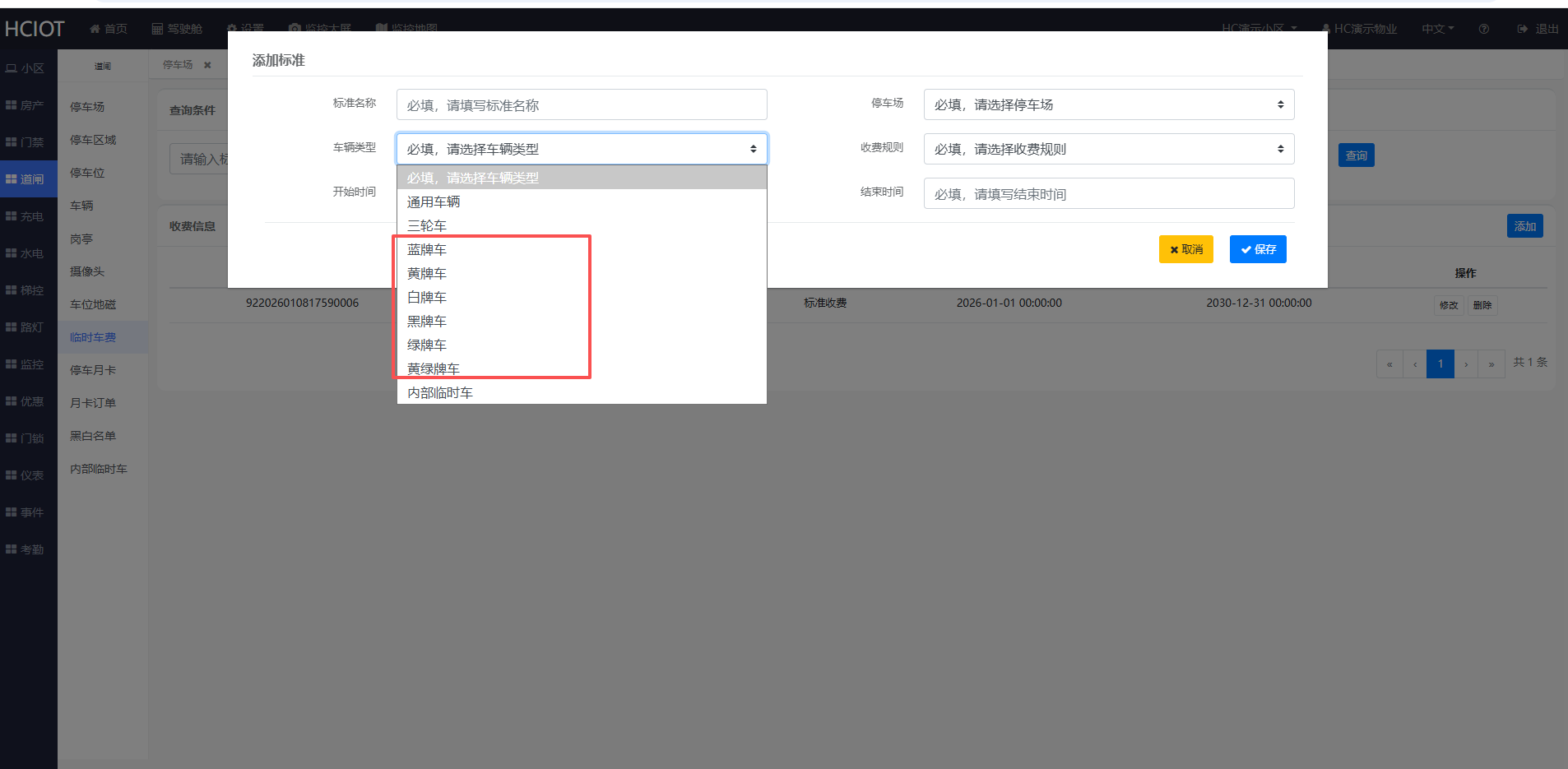

按照车牌颜色添加不同车牌颜色的临时停车费，如果相机没有返回车牌颜色 时会走通用车辆配置

三、内部临时车收费

多余部分车辆比如情亲车等会有单独的收费标准，按如下配置：

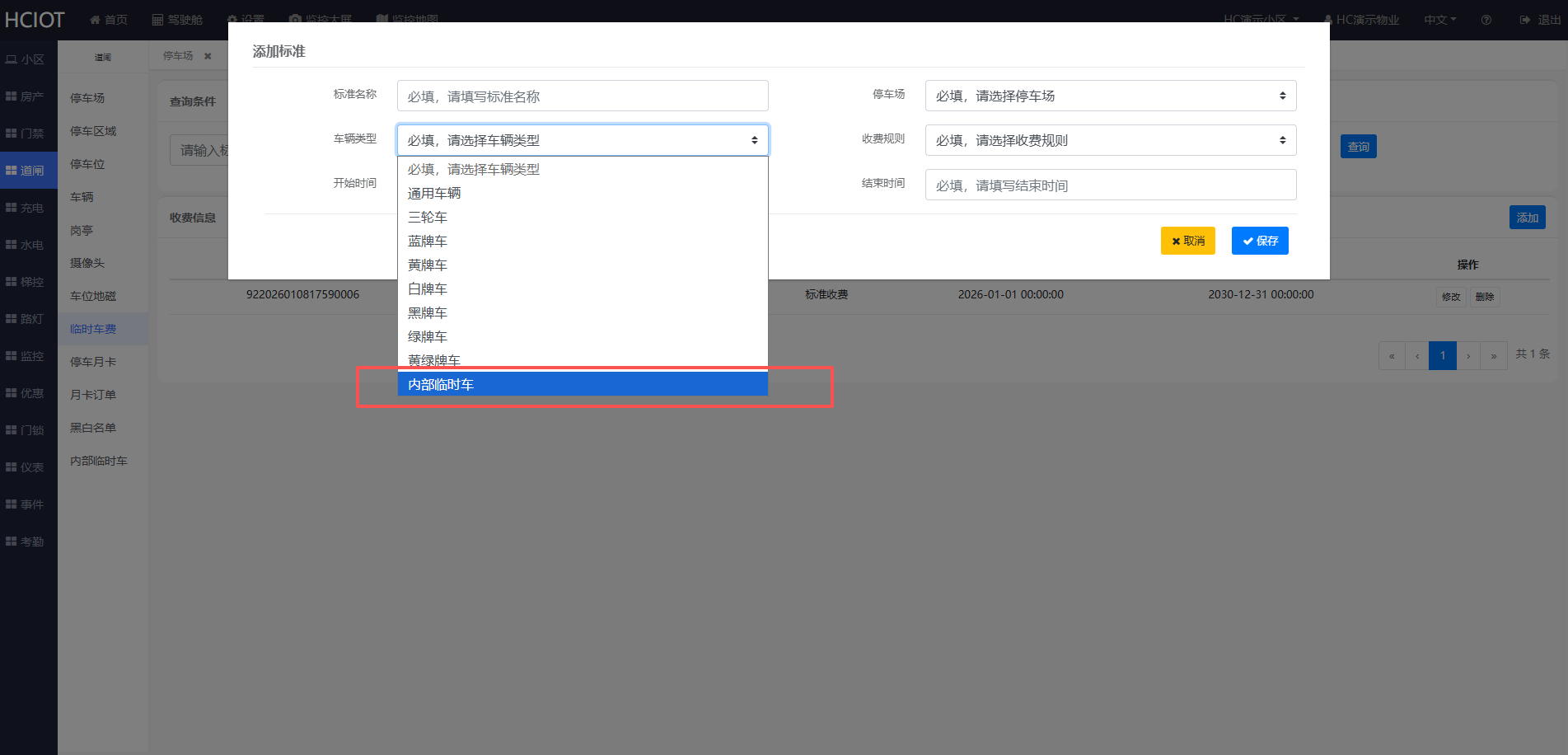

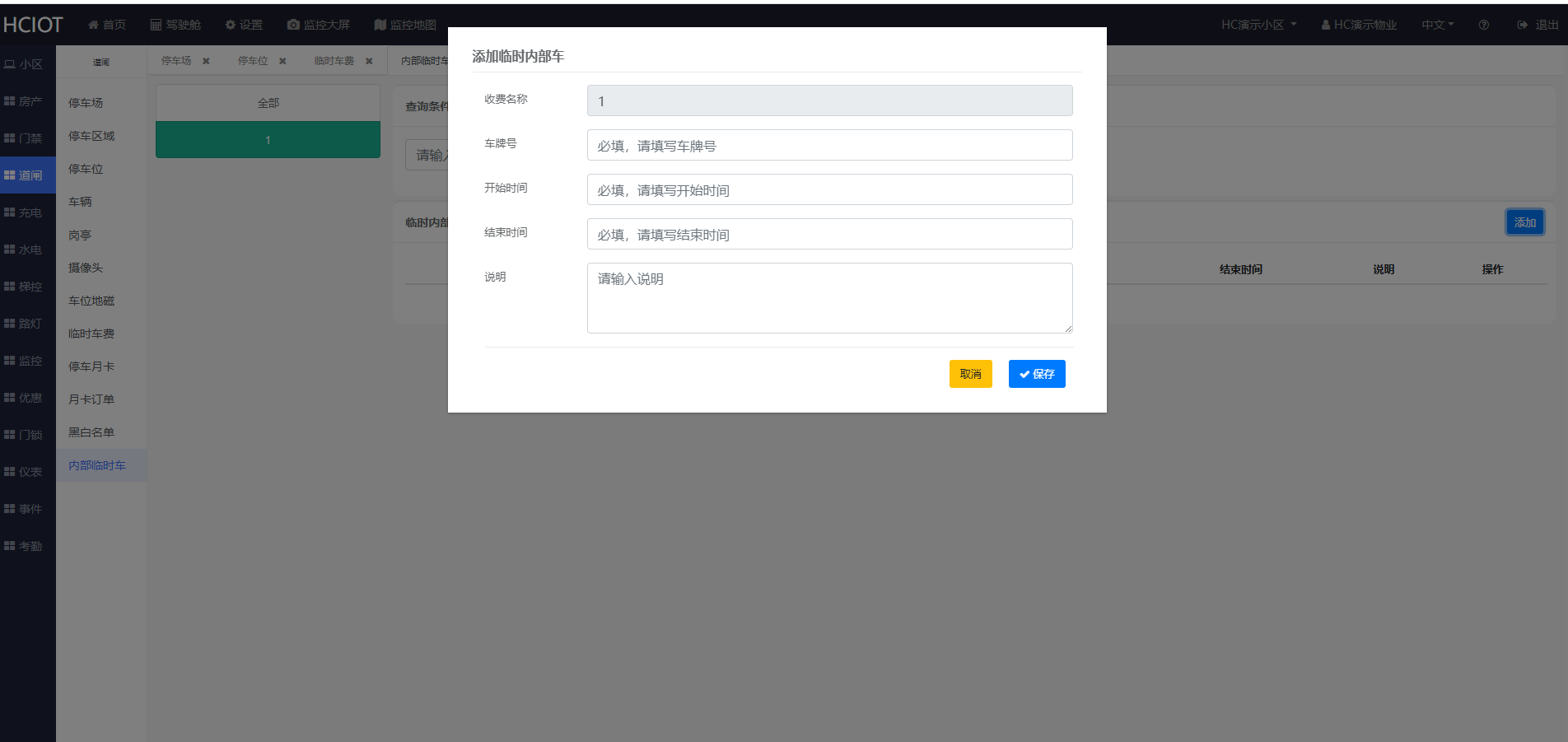

3.1、在临时车费页面配置车辆类型为《内部临时车》收费 3.2、在内部临时车页面添加收费规则下的车辆

四、代码更新

代码直接下载 https://gitee.com/java110/MicroCommunityIot sql

alter table car_inout add COLUMN `color_type` varchar(12) NOT NULL default '1' COMMENT '车牌颜色';
delete from t_dict where table_name = 'temp_car_fee_config' and table_columns = 'car_type';
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '9901', '通用车辆', '通用车辆', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '9902', '内部临时车', '内部临时车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '9905', '三轮车', '三轮车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '1', '蓝牌车', '蓝牌车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '2', '黄牌车', '黄牌车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '3', '白牌车', '白牌车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '4', '黑牌车', '黑牌车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '5', '绿牌车', '绿牌车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`t_dict` (`status_cd`, `name`, `description`, `create_time`, `table_name`, `table_columns`) VALUES ( '6', '黄绿牌车', '黄绿牌车', '2019-10-15 09:47:21', 'temp_car_fee_config', 'car_type');
INSERT INTO `hc_iot`.`c_route` (`id`, `app_id`, `service_id`, `order_type_cd`, `invoke_limit_times`, `invoke_model`, `create_time`, `status_cd`) VALUES ('102026010838440012', '992023010100000001', '982026010876460011', 'Q', '1000', 'S', '2026-01-08 16:07:56', '0');
INSERT INTO `hc_iot`.`c_route` (`id`, `app_id`, `service_id`, `order_type_cd`, `invoke_limit_times`, `invoke_model`, `create_time`, `status_cd`) VALUES ('102026010825150010', '992023010100000001', '982026010833940009', 'D', '1000', 'S', '2026-01-08 16:07:25', '0');
INSERT INTO `hc_iot`.`c_route` (`id`, `app_id`, `service_id`, `order_type_cd`, `invoke_limit_times`, `invoke_model`, `create_time`, `status_cd`) VALUES ('102026010829850008', '992023010100000001', '982026010849220007', 'Q', '1000', 'S', '2026-01-08 16:07:01', '0');
INSERT INTO `hc_iot`.`c_route` (`id`, `app_id`, `service_id`, `order_type_cd`, `invoke_limit_times`, `invoke_model`, `create_time`, `status_cd`) VALUES ('102026010832310006', '992023010100000001', '982026010873860005', 'D', '1000', 'S', '2026-01-08 16:06:35', '0');
INSERT INTO `hc_iot`.`c_service` (`service_id`, `service_code`, `business_type_cd`, `name`, `seq`, `is_instance`, `url`, `method`, `timeout`, `retry_count`, `create_time`, `status_cd`) VALUES ('982026010876460011', 'car.updateTempInnerCar', 'API', '修改内部临时车', '1', 'CMD', 'http://iot-car', 'GET', '60', '3', '2026-01-08 16:07:56', '0');
INSERT INTO `hc_iot`.`c_service` (`service_id`, `service_code`, `business_type_cd`, `name`, `seq`, `is_instance`, `url`, `method`, `timeout`, `retry_count`, `create_time`, `status_cd`) VALUES ('982026010833940009', 'car.saveTempInnerCar', 'API', '保存内部临时车', '1', 'CMD', 'http://iot-car', 'POST', '60', '3', '2026-01-08 16:07:24', '0');
INSERT INTO `hc_iot`.`c_service` (`service_id`, `service_code`, `business_type_cd`, `name`, `seq`, `is_instance`, `url`, `method`, `timeout`, `retry_count`, `create_time`, `status_cd`) VALUES ('982026010849220007', 'car.listTempInnerCars', 'API', '查询内部临时车', '1', 'CMD', 'http://iot-car', 'GET', '60', '3', '2026-01-08 16:07:00', '0');
INSERT INTO `hc_iot`.`c_service` (`service_id`, `service_code`, `business_type_cd`, `name`, `seq`, `is_instance`, `url`, `method`, `timeout`, `retry_count`, `create_time`, `status_cd`) VALUES ('982026010873860005', 'car.deleteTempInnerCar', 'API', '删除内部临时车', '1', 'CMD', 'http://iot-car', 'POST', '60', '3', '2026-01-08 16:06:35', '0');
INSERT INTO `hc_iot`.`m_menu` (`m_id`, `name`, `g_id`, `url`, `seq`, `p_id`, `description`, `create_time`, `status_cd`, `is_show`) VALUES ('702026010862210002', '内部临时车', '802023082372950010', '/#/pages/car/tempInnerCar', '12', '502026010844150003', '', '2026-01-08 16:05:05', '0', 'Y');
INSERT INTO `hc_iot`.`p_privilege` (`p_id`, `name`, `description`, `create_time`, `status_cd`, `domain`, `resource`, `m_id`) VALUES ('502026010844150003', '内部临时车', '', '2026-01-08 16:05:05', '0', '800900000003', '/#/pages/car/tempInnerCar', '702026010862210002');
INSERT INTO `hc_iot`.`p_privilege_rel` (`rel_id`, `p_id`, `pg_id`, `level_cd`, `create_time`, `status_cd`) VALUES ('102026010828670004', '502026010844150003', '600201904002', '1001', '2026-01-08 16:05:05', '0');
CREATE TABLE `temp_inner_car` (
  `tic_id` varchar(30) NOT NULL COMMENT '编号',
  `car_num` varchar(12) NOT NULL COMMENT '车牌号',
  `start_time` datetime NOT NULL COMMENT '开始时间',
  `end_time` datetime NOT NULL COMMENT '结束时间',
  `config_id` varchar(30) NOT NULL COMMENT '收费标准ID',
  `fee_name` varchar(64) NOT NULL COMMENT '收费名称',
  `community_id` varchar(30) NOT NULL COMMENT '小区ID',
  `pa_id` varchar(30) NOT NULL COMMENT '停车场ID',
  `pa_num` varchar(12) NOT NULL COMMENT '停车场编号',
  `remark` varchar(512)  COMMENT '说明',
  `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `status_cd` varchar(2) NOT NULL DEFAULT '0' COMMENT '数据状态，详细参考c_status表，S 保存，0, 在用 1失效'
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
